| Internal Driving Circuit: | Yes |
|---|---|
| Technology: | Piezo |
| Operating Voltage: | 3 ~ 16 VDC |
| Rated Voltage: | 12 VDC |
| Sound Pressure Level: | 90 dBA min. at 30 cm/12 VDC |
| Current Consumption: | 8 mA max. at 12 VDC |
| Tone: | Single |
| Mounting Style: | Lead Wires & Mounting Ears |
| Operating Temperature: | -20°C ~ +60°C |
| Diameter x Height: | 23.0 mm x 17.0 mm |
| Weight: | 5.0 g |

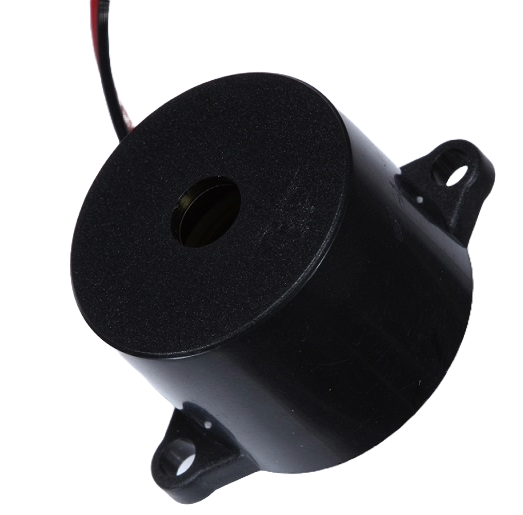

23 mm Piezo Audio Indicator, 3~16 VDC, 90 dBA, 3.7 kHz, Single Tone, Lead Wires
