| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 6 ~ 14 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 85 dBA min @ 30cm/12VDC |
| Current Consumption | 35 mA max. at 12 VDC |
| Tone | Single |
| Mounting Style | Lead Wires & Mounting Ears |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Diameter x Height | 25.6 mm x 16.0 mm |
| Weight | 41.0 g |

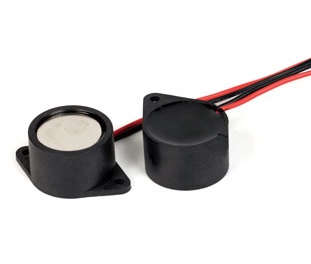

254S3120NLFLA-001
Part #: 254S3120NLFLA-001
For More Information About This Part, Please Contact Us
$0.00
25.6 mm Piezo Audio Indicator, 6~14 VDC, 85 dBA, 3.0 kHz, Single Tone, Lead Wires
