| Audio Standard (mm): | 6.3 |
|---|---|

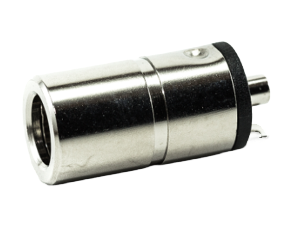

| Connector Type: | Jack |
| Mono or Stereo: | Stereo |
| Number of Conductors: | 3 |
| Orientation: | Moldable |
| Thread Mounting: | No |
Withstanding Voltage: 500VAC for 1 Minute
Insulation Resistance: 100MΩ (min.) at 500VDC
Contact Resistance: 30mΩ (max.)
Insertion And Extraction Force: 0.4 – 4.0 KG
Life Test: 5,000 Cycles (min.)
