| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 3 ~ 24 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 85 dB min. at 30 cm/12 VDC |
| Current Consumption | 10 mA max. at 12 VDC |
| Tone | Single |
| Mounting Style | Lead Wires & Mounting Ears |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Diameter x Height | 23.0 mm x 9.8 mm |
| Weight | 3.5 g |
94S4120LFLA
Part #: 94S4120LFLA
For More Information About This Part, Please Contact Us
$0.00

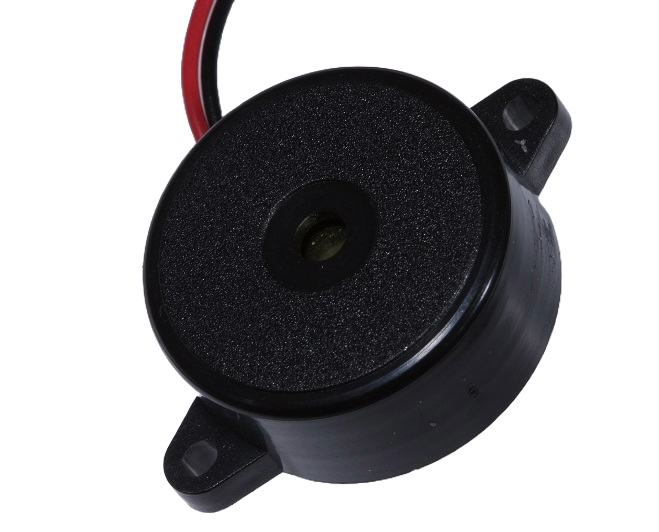

23 mm Piezo Audio Indicator, 3~24 VDC, 85 dB, 3.5 KHz, Single Tone, Lead Wires
