| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 5 ~ 18 VDC |
| Rated Voltage | 12 VDC, 9 VDC |
| Sound Pressure Level | 92.0 ± 5.0 dBA min @ 60cm/9VDC, 98.0 ± 5.0 dBA min @ 60cm/12VDC |
| Tone | Single |
| Operating Temperature | -20°C ~ +85°C |
| Storage Temperature | -30°C ~ +85°C |
| Mounting Style | PCB Pins |
| Diameter x Height | 26.0 mm x 22.0 mm |
| Weight | 15.0 g |

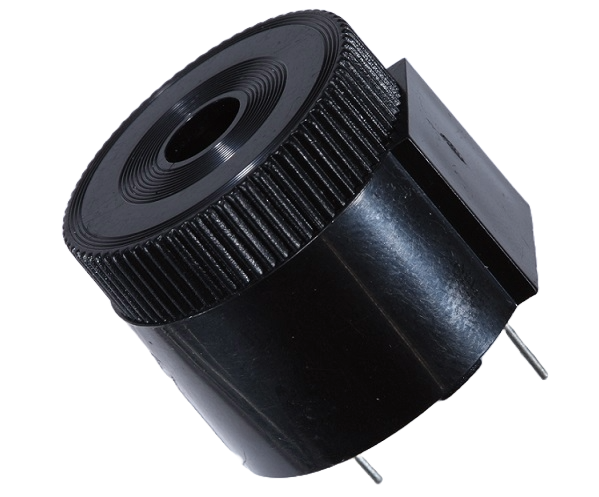

170S3120LFPH
Part #: 170S3120LFPH
For More Information About This Part, Please Contact Us
$0.00
26.0 mm Piezo Audio Indicator, 5~18 VDC, 2.8 kHz, Single, PCB Pins
