| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 3 ~ 20 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 100 dBA min @ 30cm / 12VDC |
| Current Consumption | 12 mA max. at 12 VDC |
| Tone | Slow Pulse |
| Mounting Style | Lead Wires & Mounting Ears |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Diameter x Height | 41.5 mm x 16.0 mm |
| Weight | 14.0 g |
29PN3120LF-001
Part #: 29PN3120LF-001
For More Information About This Part, Please Contact Us
$0.00

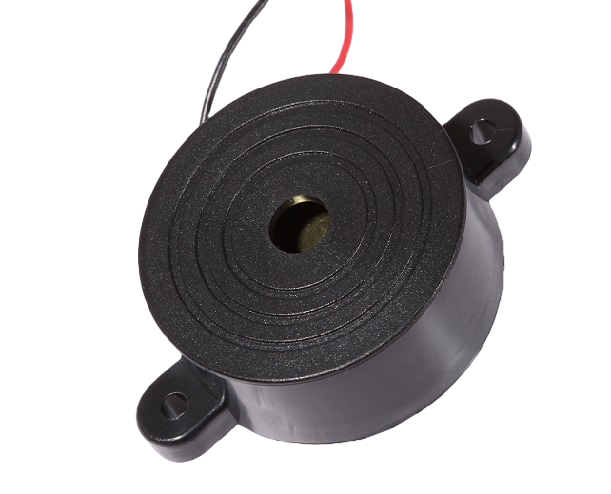

41.5 mm Piezo Audio Indicator, 3~20 VDC, 100 dB, 2.9 KHz, Slow Pulse, Lead Wires
