| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 3 ~ 18 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 105 dBA min. at 30cm / 12VDC |
| Current Consumption | 35 mA max. at 12 VDC |
| Tone | Single |
| Mounting Style | Lead Wires |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Diameter x Height | 45.0 mm x 25.8 mm |
| Weight | 28.0 g |
3S3120LFLB
Part #: 3S3120LFLB
For More Information About This Part, Please Contact Us
$0.00

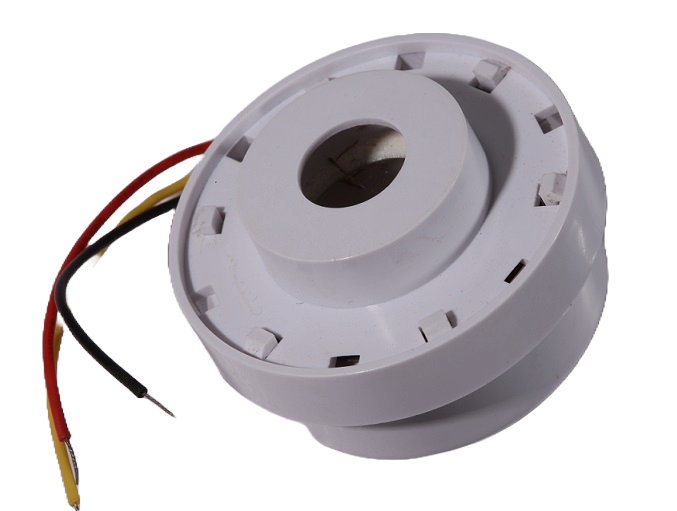

45 mm Piezo Audio Indicator, 3~18 VDC, 105 dB, 2.9 kHz, Single Tone, Lead Wires
