| Connector Type: | Jack |
|---|---|
| Center Pin Size: | 2.0 mm |
| Mounting Style: | PCB Mount |
| Orientation: | Vertical |
655-141
Part #: 655-141
For More Information About This Part, Please Contact Us
$0.00

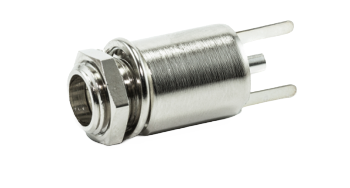

2.0 x 5.5mm, 12.0 A, PCB Mount, DC Power Jack
- Rating: 24VDC, 12.0A
- Withstanding Voltage: 500VAC for 1 Minute
- Insulation Resistance: 100MΩ (min.) at 500VDC
- Contact Resistance: 30mΩ (max.)
- Insertion Force: 0.3 – 2.0 kg
- Extraction Force: 0.3 – 2.0 kg
- Life Test: 5,000 Cycles min.
