| Internal Driving Circuit | Yes |
|---|---|
| Technology | Piezo |
| Operating Voltage | 3 ~ 15 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 90 dBA min. at 30 cm/12 VDC |
| Current Consumption | 10 mA max. at 12 VDC |
| Tone | Pulse |
| Mounting Style | Lead Wires & Mounting Ears |
| Operating Temperature | -20°C ~ +60°C |
| Diameter x Height | 29.5 mm x 24.5 mm |
| Weight | 15.0 g |
7P3120LFLA
Part #: 7P3120LFLA
For More Information About This Part, Please Contact Us
$0.00

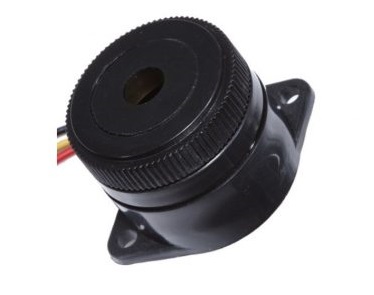

29.5 mm Piezo Audio Indicator, 3~15 VDC, 90 dB, 3.2 kHz, Pulse, Lead Wires
