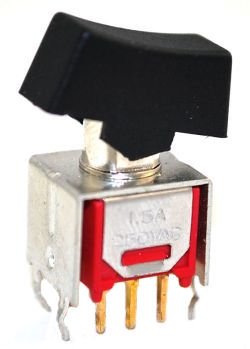

RS-5 Series, DPDT, Sub-Miniature Rocker Switches
| Size | Sub-Miniature |
|---|---|
| Actuator | Rocker |
| Function | DPDT |
| Mounting Style | PCB, Solder Lug, Wire Wrap |
| Orientation | Vertical |
Note: The construction of this item can be customized to your design requirements. Click on the tab to the right for our “Build-A-Part” Catalog pages.
CONTACT RATING: 3A at 120VAC/28VDC (With Silver Plated Contacts)
ELECTRICAL LIFE: 30,000 Make-and-Break Cycles
CONTACT RESISTANCE: 20mΩ (max.) Initial at 2-4VDC, 100mA
INSULATION RESISTANCE: 1,000MΩ (min.)
DIELECTRIC STRENGTH: 1,500V RMS at Sea Level
OPERATING TEMPERATURE: -30°C ~ 85°C
CASE: Diallyl Phthalate (DAP), Flame Retardant, Heat Stabilized (UL 94V-0)
ACTUATOR: Nylon
BUSHING: Copper Alloy, Nickel Plated
HOUSING: Stainless Steel
CONTACTS AND TERMINALS: Copper Alloy – Silver or Gold Plated
SWITCH SUPPORT: Copper Alloy – Tin Plated
