| Internal Driving Circuit | No |
|---|---|
| Technology | Magnetic |
| Operating Voltage | 2.5 ~ 4.5 V |
| Rated Voltage | 3.6 V |
| Sound Pressure Level | 87 dBA min. at 10cm / 3.6 V |
| Current Consumption | 100 mA at 3.6V |
| Mounting Style | SMD |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Length Width Height | 8.5 mm x 8.5 mm x 4.0 mm |
| Weight | 0.8 g |

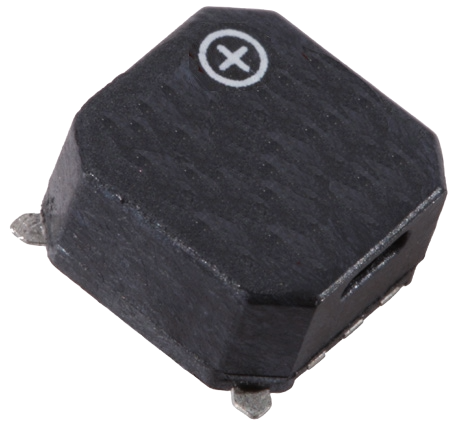

8.5 mm x 8.5 mm Magnetic Sound Transducer, 2.5~4.5 V, 87 dBA, 2.7 kHz, SMD
