| Internal Driving Circuit | Yes |
|---|---|
| Technology | Magnetic |
| Operating Voltage | 4 ~ 7 VDC |
| Rated Voltage | 5 VDC |
| Sound Pressure Level | 85 dBA min. at 10 cm/5 VDC |
| Current Consumption | 35 mA max. at 5 VDC |
| Mounting Style | PCB Pins |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Diameter x Height | 12 x 9.5 mm |
| Weight | 2.0 g |

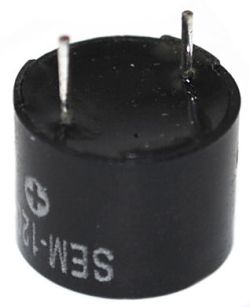

SEM-1205C
Part #: SEM-1205C
For More Information About This Part, Please Contact Us
$0.00
12 mm Magnetic Audio Indicator, 4~7 VDC, 85 dBA, 2.3 kHz, PCB Pins
