| Internal Driving Circuit | Yes |
|---|---|
| Technology | Magnetic |
| Operating Voltage | 3 ~ 6.5 VDC |
| Rated Voltage | 5 VDC |
| Sound Pressure Level | 80 dBA min at 10cm / 5 VDC |
| Current Consumption | 30 mA at 5 VDC |
| Mounting Style | SMD |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +90°C |
| Length Width Height | 10.0 mm x 9.6 mm x 5.0 mm |
| Weight | 1.0 g |

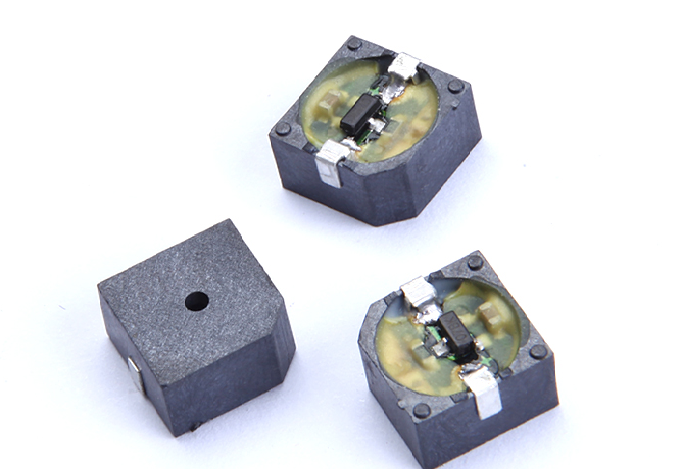

SMDB05LFMP
Part #: SMDB05LFMP
For More Information About This Part, Please Contact Us
$0.00
10 mm x 9.6 mm Magnetic Audio Indicator, 3~6.5 VDC, 80 dBA, 2.7 kHz, SMD
