| Internal Driving Circuit | Yes |
|---|---|
| Technology | Magnetic |
| Operating Voltage | 8 ~ 15 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 88 dBA min. at 10 cm / 12 VDC |
| Current Consumption | 30 mA max. at 12 VDC |
| Mounting Style | SMD |
| Operating Temperature | -40°C ~ +105°C |
| Storage Temperature | -40°C ~ +120°C |
| Length Width Height | 13.8 mm x 12.8 mm x 10.0 mm |
| Weight | 3.0 g |
STDB12LFRMP
Part #: STDB12LFRMP
For More Information About This Part, Please Contact Us
$0.00

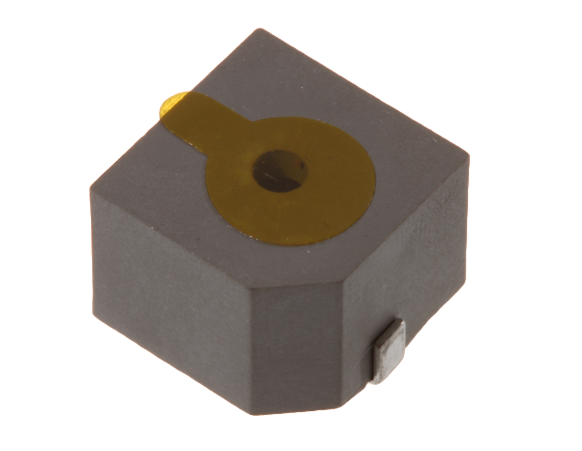

13.8 mm x 12.8 mm Magnetic Audio Indicator, 8~15 VDC, 88 dBA, 2.4 kHz, SMD
