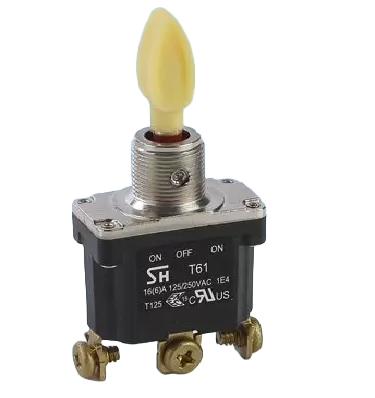

T6114-U5 Series, SPDT, IP68, Sealed, Top Waterproof Toggle Switches
| Size | Standard |
|---|---|
| Actuator | Toggle |
| Function | SPDT |
| Mounting Style | Quick Connect, Screw Terminals, Solder Lug |
| Orientation | Vertical |
Note: The construction of this item can be customized to your design requirements. Click on the tab to the right for our “Build-A-Part” Catalog pages.
CONTACT RATING: 16A at 250 VAC
ELECTRICAL LIFE: 10,000 Cycles
CONTACT RESISTANCE: 30 mΩ (max.) Initial
INSULATION RESISTANCE: 1,000 MΩ (min.) 500 VDC
DIELECTRIC STRENGTH: 1,500 VAC/1 Min.
OPERATING TEMPERATURE: -40 °C to 85°C
CASE: Nylon
TERMINAL: Copper Alloy
CONTACT CHIP: Copper Alloy Plated, Silver Alloy
BUSHING: Zinc Alloy Plated
ACTUATOR: Copper Alloy Plated
SILICON: Silicon
