| Internal Driving Circuit | Yes |
|---|---|
| Technology | Magnetic |
| Operating Voltage | 9 ~ 15 VDC |
| Rated Voltage | 12 VDC |
| Sound Pressure Level | 83 dBA min. at 10cm / 12 VDC |
| Current Consumption | 30 mA max at 12 VDC |
| Mounting Style | PCB Pins |
| Operating Temperature | -20°C ~ +70°C |
| Diameter x Height | 12.0 mm x 7.5mm |
| Weight | 2.0 g |
UDB12LFPN
Part #: UDB12LFPN
For More Information About This Part, Please Contact Us
$0.00

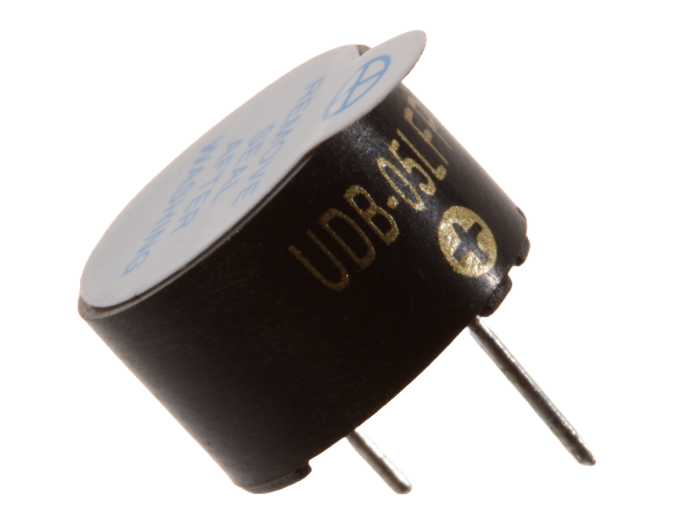

12 mm Magnetic Audio Indicator, 9~15 VDC, 83 dBA, 2.3 kHz, PCB Pins
