| Actuator | Tact |
|---|---|
| Function | SPST |
| Mounting Style | SMT |
| Orientation | Vertical |
Note: The construction of this item can be customized to your design requirements. Click on the tab to the right for our “Build-A-Part” Catalog pages.
TQ SERIES
Part #: TQ SERIES
For More Information About This Part, Please Contact Us
$0.00

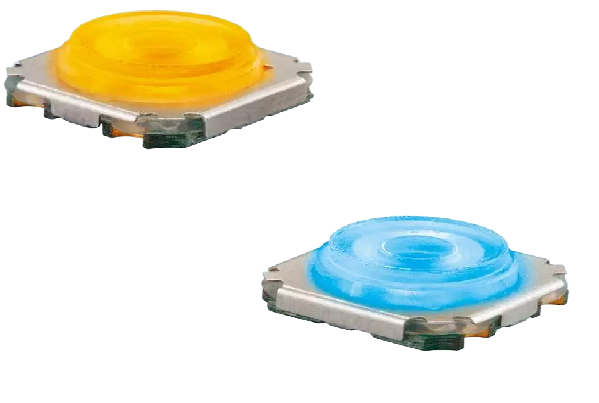

TQ Series, SPST, Surface Mount (SMT) Washable Illuminated Tact Switches
CONTACT RATING: 50mA, 28VDC
CONTACT RESISTANCE: 100mΩ max (initial)
INSULATION RESISTANCE: 500MΩ min. at 250VDC
DIELECTRIC STRENGTH: 500VAC for 1 minute
OPERATING TEMPERATURE: -40ºC to +95ºC
ELECTRICAL LIFE: 500,000 Cycles
