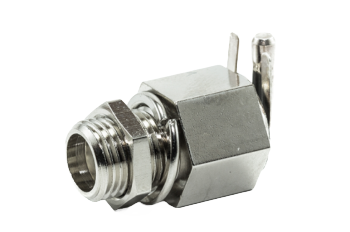

| Connector Type: | Jack |
|---|---|
| Center Pin Size: | 2.5 mm |
| Mounting Style: | Panel Mount |
| Orientation: | Horizontal |
- Rating: 24VDC, 12.0A
- Withstanding Voltage: 500VAC for 1 Minute
- Insulation Resistance: 100MΩ (min.) at 500VDC
- Contact Resistance: 30mΩ (max.)
- Insertion Force: 0.3 – 2.0 kg
- Extraction Force: 0.3 – 2.0 kg
- Life Test: 5,000 Cycles min.
