Locking DC Power Connectors

Shogyo offers a unique line of DC Power Connectors with a quarter turn locking feature.  These are recommended for any application in which a completely secure connection is required.  They are especially useful in rugged applications whereby a disconnection cannot be risked by simply tugging on the cord.  Below, please see some photos to illustrate how these work.

Here are links to the product pages.

2.0MM DC JACKS:

MJ-10LR

MJ-179LR

SCD433CCS000B00G

SCD442CCS011B00G

SCD442CCS013B00G

SCD443CCS011B00G

SCD443CCS013B00G

2.35MM DC JACKS:

MJ-11LR

MJ-180LR

2.5MM DC JACKS:

SCD433DCS000B00G

SCD442DCS011B00G

SCD442DCS013B00G

SCD443DCS011B00G

SCD443DCS013B00G

2.1MM DC PLUGS

MP-121AR

MP-121CR

MP-121LL

MP-121MR

SCDP442CBNN0000G

SCDP443CBNNNBPTG

2.5MM DC PLUGS

MP-122AR

MP-122CR

MP-122LL

MP-122MR

SCDP442DBNN0000G

SCDP443DBNNNBPTG

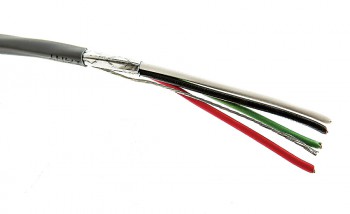

YOUR CABLE ASSEMBLY & WIRE HARNESS NEEDS

For over 40 years, Shogyo has been producing Cable Assemblies and Wire Harnesses for OEM customers all around the Globe.  From simple, 2 Connector solutions to intensive and complex Assemblies, we can truly do it all!

And with our deep industry footprint, we have an extensive network of material and component suppliers.  This allows us to source the most competitively priced materials and to produce your Assembly at a lower cost than many of our competitors!

We also guarantee the quality of our work.  Each piece goes through careful continuity checks, pull testing, dimensional verification, and visual inspection before leaving any of our facilities.

Send your drawing and quantity requirements to info@shogyo.com.  We can assure you that you will not be disappointed!


RoHS 3 Compliance

Image result for rohs3

As of this coming July 22nd, RoHS 3 will take full effect. Four phthalates have been added and restricted under RoHS 3:

  • Bis(2-ethylhexyl) phthalate (DEHP)
  • Benzyl butyl phthalate (BBP)
  • Dibutyl phthalate (DBP)
  • Diisobutyl phthalate (DIBP)

See here for an understanding of the changes being made, and feel free to reach out to Shogyo to confirm if any of your parts are compliant.


2019 CNY Schedule

Please note that the factory shutdowns for Chinese New Year begin at the end of January.  There are significant delays both before and after the holiday leading to longer than usual lead times through the first quarter of the year. Kindly take this into consideration when planning your forthcoming orders. Thank you!

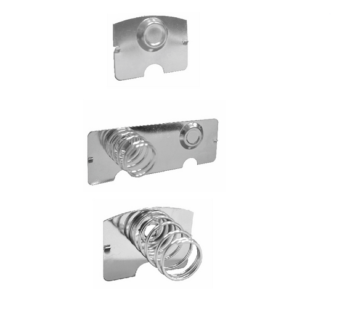

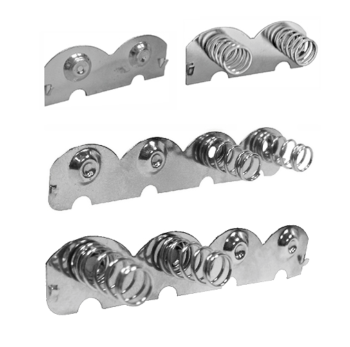

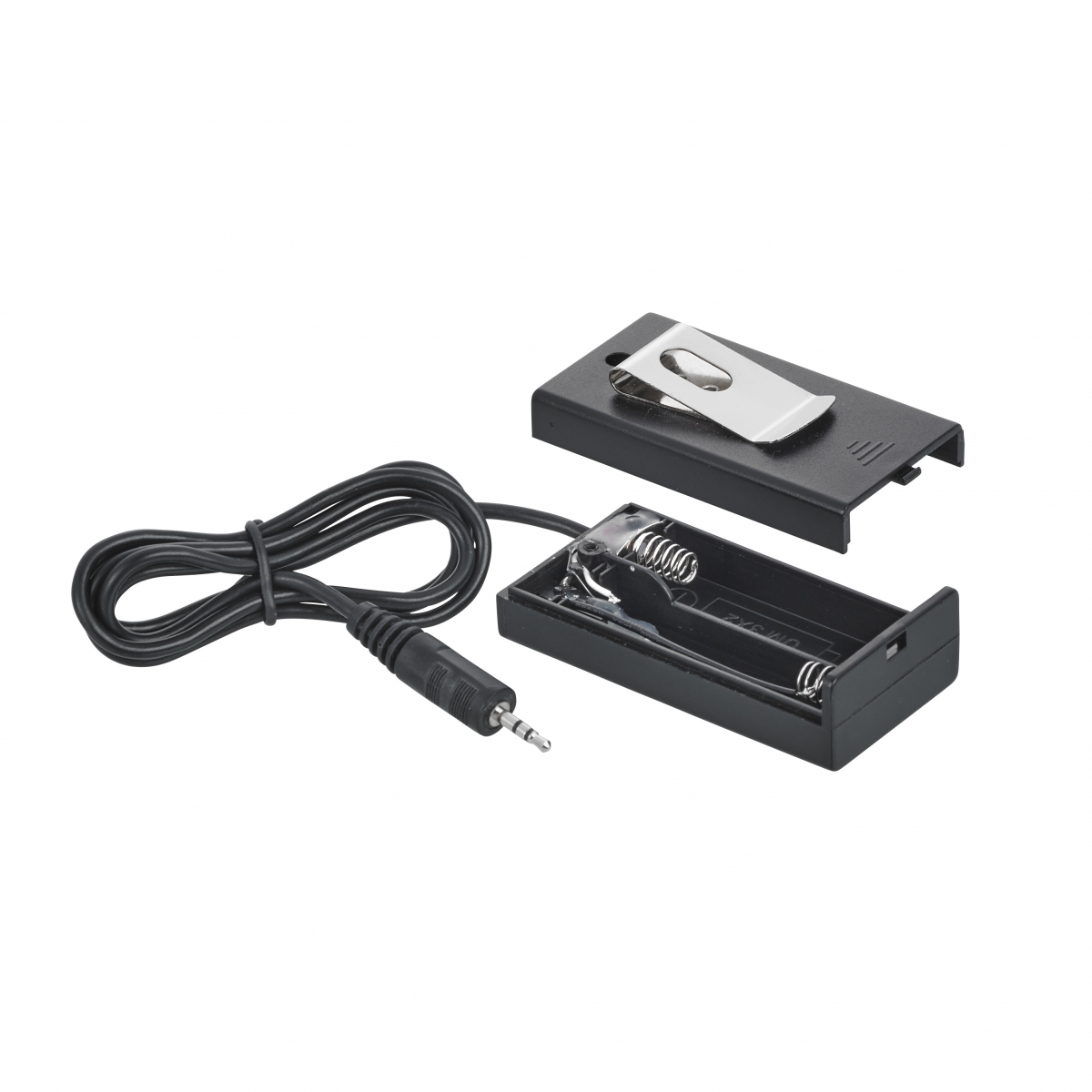

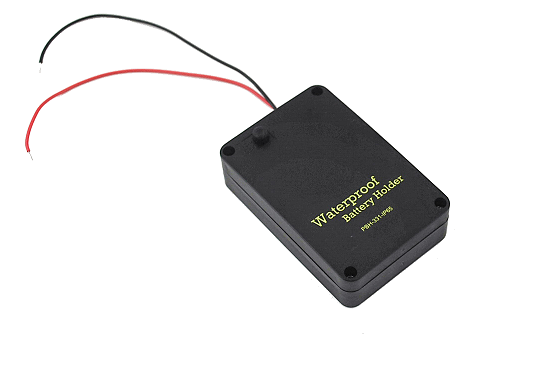

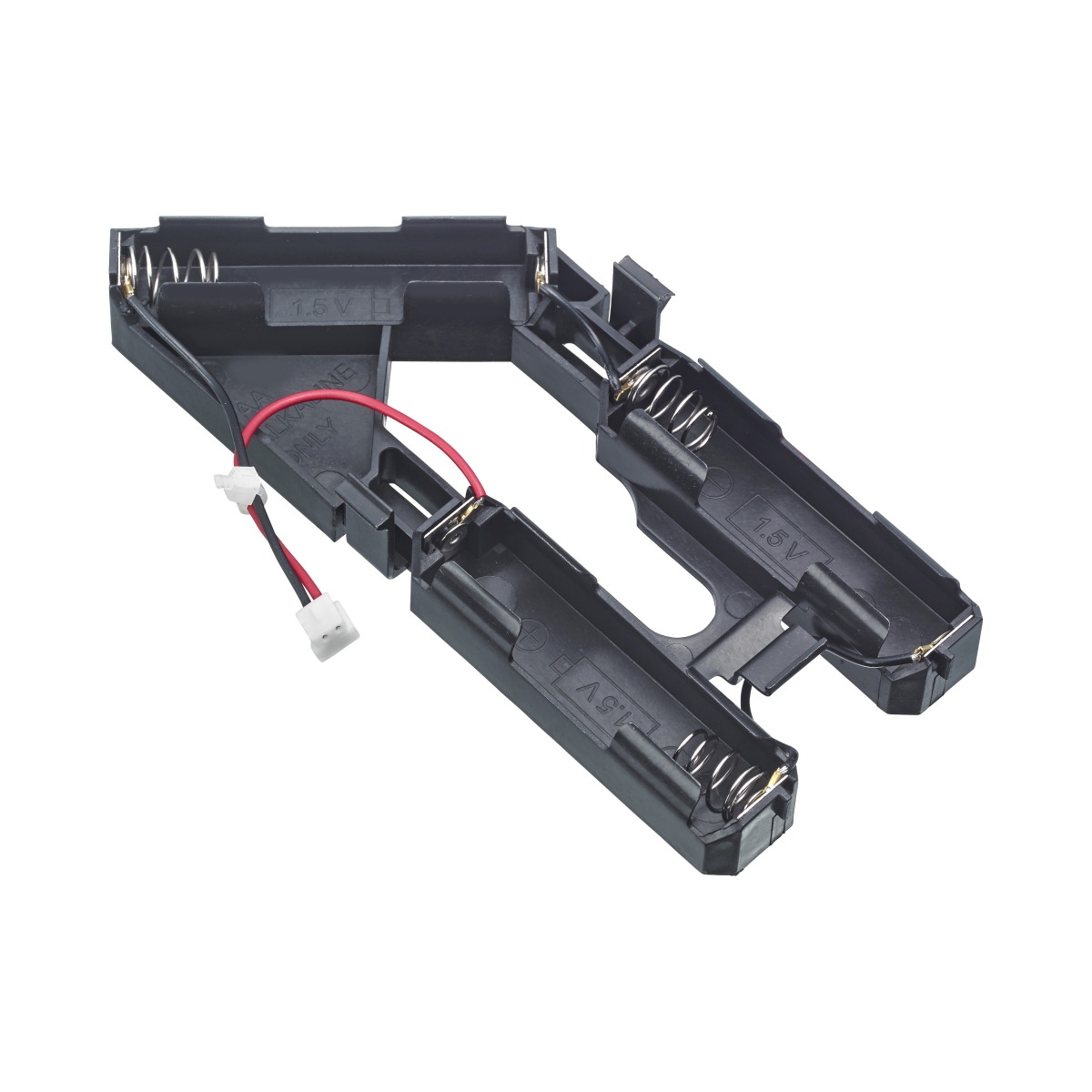

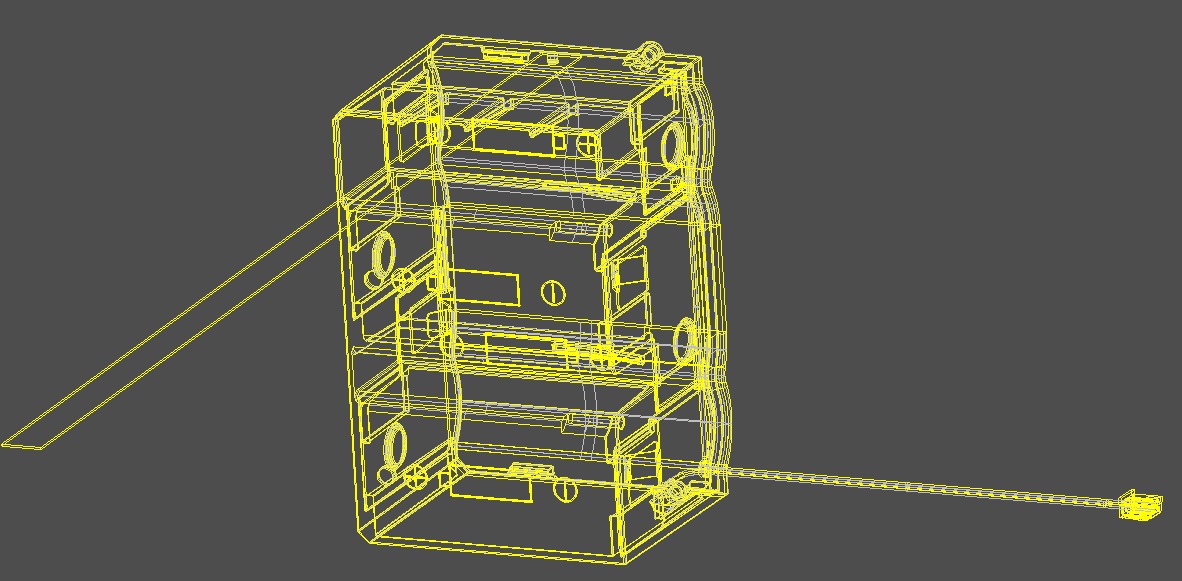

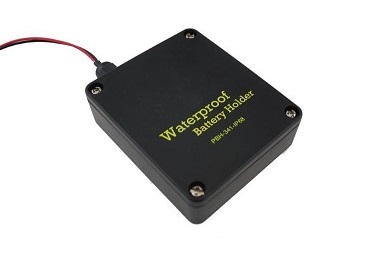

Custom Battery Holders for OEMs







Shogyo has helped OEMs in a large variety of different fields develop custom Battery Holder solutions for their products.  So send over your drawing or even a simple sketch showing what you’re trying to accomplish.  Shogyo’s talented team of engineers will then be happy to evaluate your design and offer our professional insights.

If you have any questions, feel free to reach out at info@shogyo.com or 516-921-9111

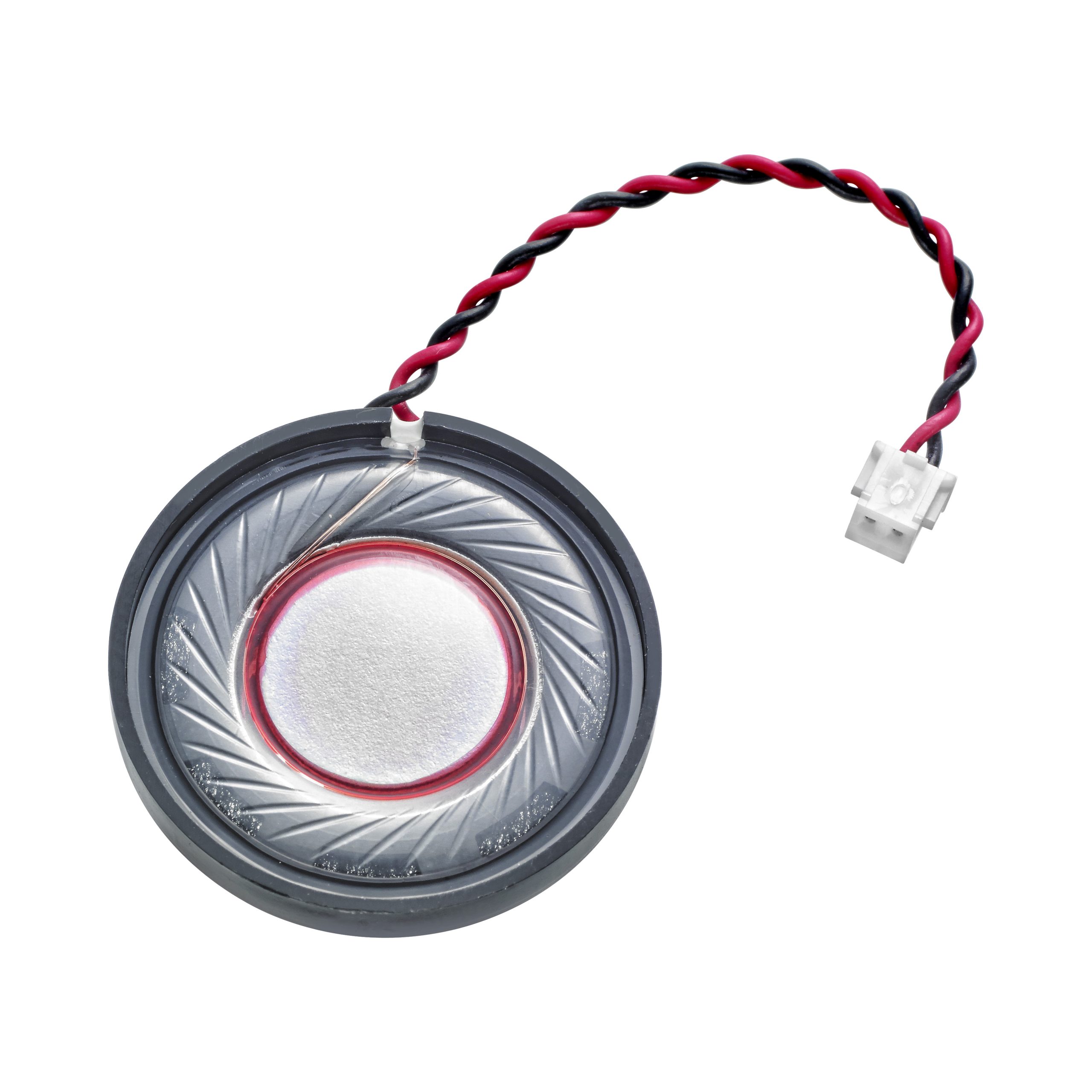

Shogyo’s Custom Speaker Solutions





Shogyo has been offering custom Speaker solutions to the OEM market for many years.  Just let us know the basic parameters for what you require (examples below) and we’ll be happy to build up a suitable model for you.

  • Size
  • Magnet Type
  • Cone Type
  • Impedance
  • Power
  • SPL
  • Frequency
  • Application



There’s typically no tooling or mold costs required.  We simply use the available raw materials to construct something that will work for your application!  Contact us at info@shogyo.com or 516-921-9111.

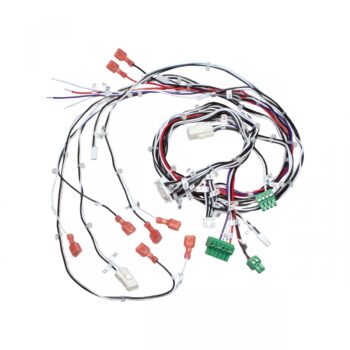

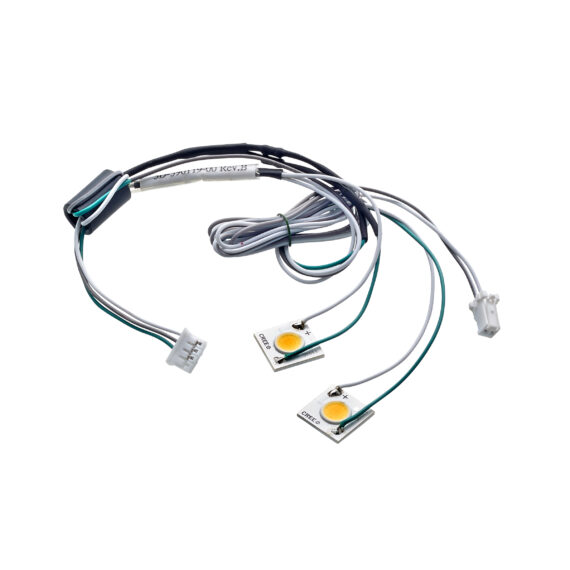

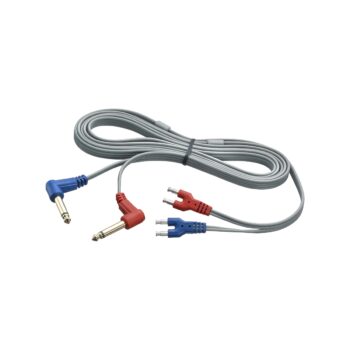

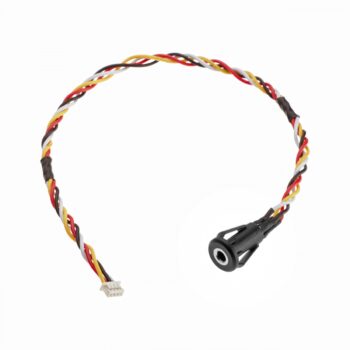

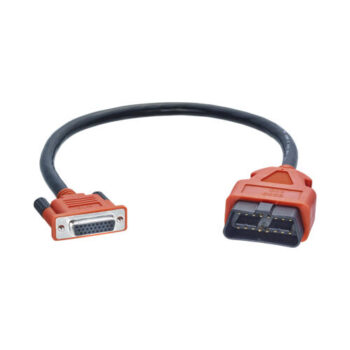

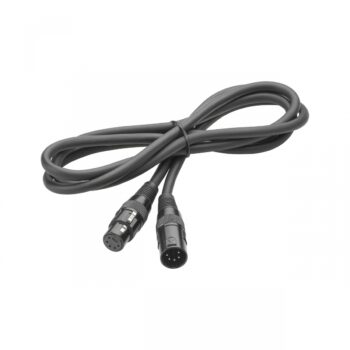

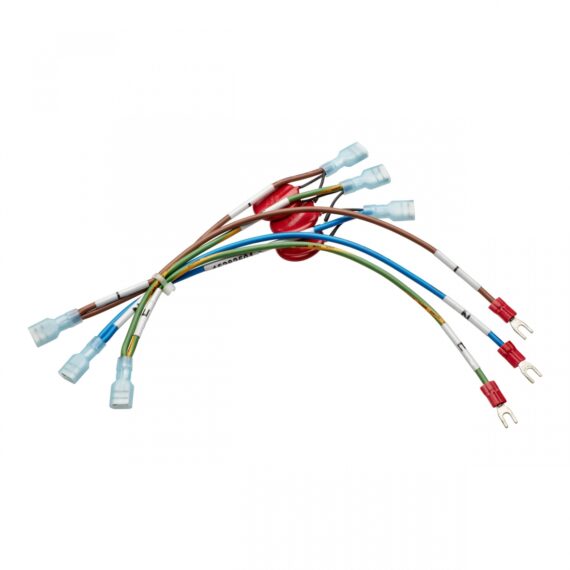

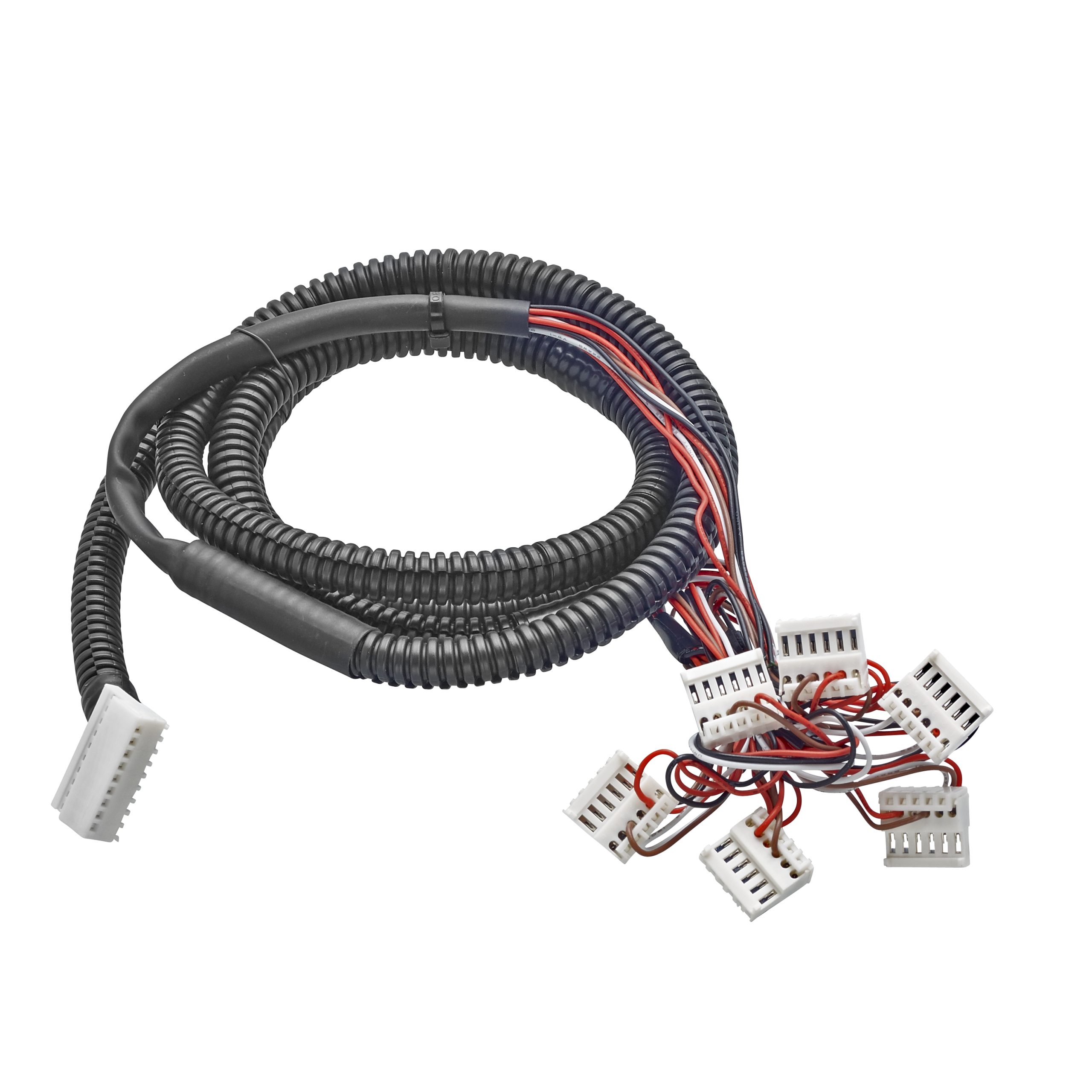

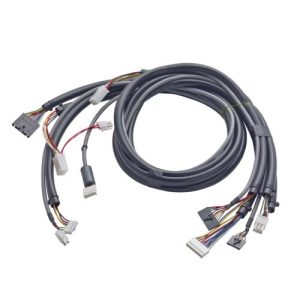

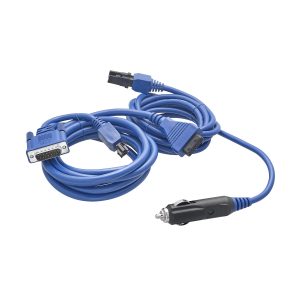

High Quality Custom Cables & Harnesses

For over 40 years, Shogyo has been manufacturing custom Cable Assemblies and Wire Harnesses for OEM customers in a wide variety of different fields.  Below, please find a list of our product capabilities.

  • Equipped to Process Wire from 30 AWG to 12 AWG
  • Wire Harnesses
  • Ribbon Cables
  • Twisted Wires
  • Battery Cables
  • Fan Harnesses
  • Molded Cables
  • Coil Cords
  • Power Cords



When it comes to pricing, we’re tough to beat!  Our deep footprint in the electronic component industry gives Shogyo a competitive advantage when sourcing the materials used for our Cable/Harness production (Wires, Connectors, Terminals, etc.).

And we’ll let the quality of our workmanship speak for itself!

Send us your specs to quote or let us know what you’re trying to accomplish!  We’d be happy to assist!

Please contact us at info@shogyo.com or 516-921-9111.




Secure Your Connections with Shogyo’s Locking DC Power Connectors!





Sometimes a standard Connection isn’t secure enough for your design.  Sometimes you need a little something extra to maintain the integrity of your power source.

Well, look no further… Shogyo has the perfect solution with our full line of Locking DC Power Connectors.  These Connectors have a quarter-turn locking feature so that the Plug remains inserted even when the Cable is pulled upon.

We have Jacks available in SMT, Through-Hole, and Panel Mount options and with Vertical and Horizontal Orientations.

We also have both Moldable and Assembly Type Plugs available!

Please find our various options below.



JACKS

MJ-10LR – 2.0mm, Vertical, Panel Mount

MJ-11LR – 2.35mm, Vertical, Panel Mount



SCD433CCS000B00G – 2.0mm, Vertical, Through-Hole

SCD433DCS000B00G – 2.5mm, Vertical, Through-Hole



MJ-179LR – 2.0mm, Right-Angle, Through-Hole

SCD442CCS011B00G – 2.0mm, Right-Angle, Through-Hole

SCD443CCS011B00G – 2.0mm, Right-Angle, Through-Hole

MJ-180LR – 2.35mm, Right-Angle, Through-Hole

SCD442DCS011B00G – 2.5mm, Right-Angle, Through-Hole

SCD443DCS011B00G – 2.5mm, Right-Angle, Through-Hole



PLUGS

MP-121AR – 2.1mm, Vertical, Assembly Type

MP-122AR – 2.5mm, Vertical, Assembly Type

MP-121CR – 2.1mm, Vertical, Assembly Type (w/ Strain Relief)

MP-122CR – 2.5mm, Vertical, Assembly Type (w/ Strain Relief)

SCDP443CBNNNBPTG – 2.1mm, Vertical, Assembly Type (w/ Strain Relief)

SCDP443DBNNNBPTG – 2.5mm, Vertical, Assembly Type (w/ Strain Relief)



MP-121LL –  2.1mm, Right-Angle, Assembly Type

MP-122LL –  2.5mm, Right-Angle, Assembly Type



SCDP442CBNN0000G – 2.1mm, Moldable

MP-121MR – 2.5mm, Moldable

SCDP442DBNN0000G – 2.5mm, Moldable



Contact us today at info@shogyo.com or 516-921-9111!
