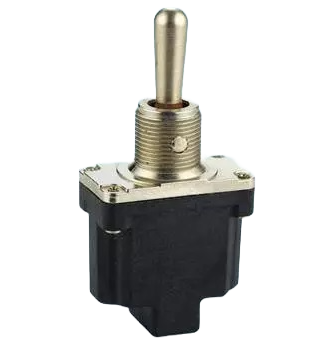

Part #: T6013 Series

T6013 Series

For More Information About This Part, Please Contact Us
Quantity
separate multiple quantities with backslash (/)
Size:

Standard

Actuator:

Toggle

Function:

SPDT

Mounting Style:

Quick Connect, Screw Terminals, Solder Lug

Orientation:

Vertical


Note: The construction of this item can be customized to your design requirements. Click on the tab to the right for our “Build-A-Part” Catalog pages.

CONTACT RATING:                          16A at 250 VAC/277 VAC

ELECTRICAL LIFE                          10,000 Cycles

CONTACT RESISTANCE:                30 mΩ (max.) Initial

INSULATION RESISTANCE:         1,000 MΩ (min.) 500 VDC

DIELECTRIC STRENGTH:              2,500 VAC/1 Min.

OPERATING TEMPERATURE:    -40 °C to 85°C





CASE:                         Nylon

TERMINAL:              Copper Alloy

CONTACT CHIP:     Copper Alloy Plated, Silver Alloy

BUSHING:                 Zinc Alloy Plated

ACTUATOR:              Copper Alloy Plated

SILICON:                   Silicon
